Stickman Wall Fix Series – Offset Panel Cap 25mm

Stickman Offset Panel Cap 25mm is an innovative solution for wall paneling trims. The offset design provides coverage for fixings behind the panel (e.g. split batten) as well as trimming the panel itself.

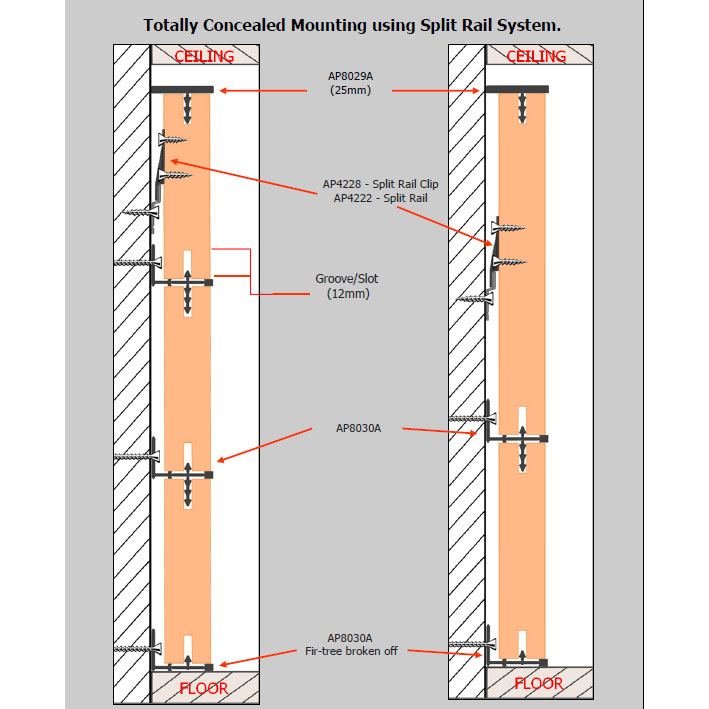

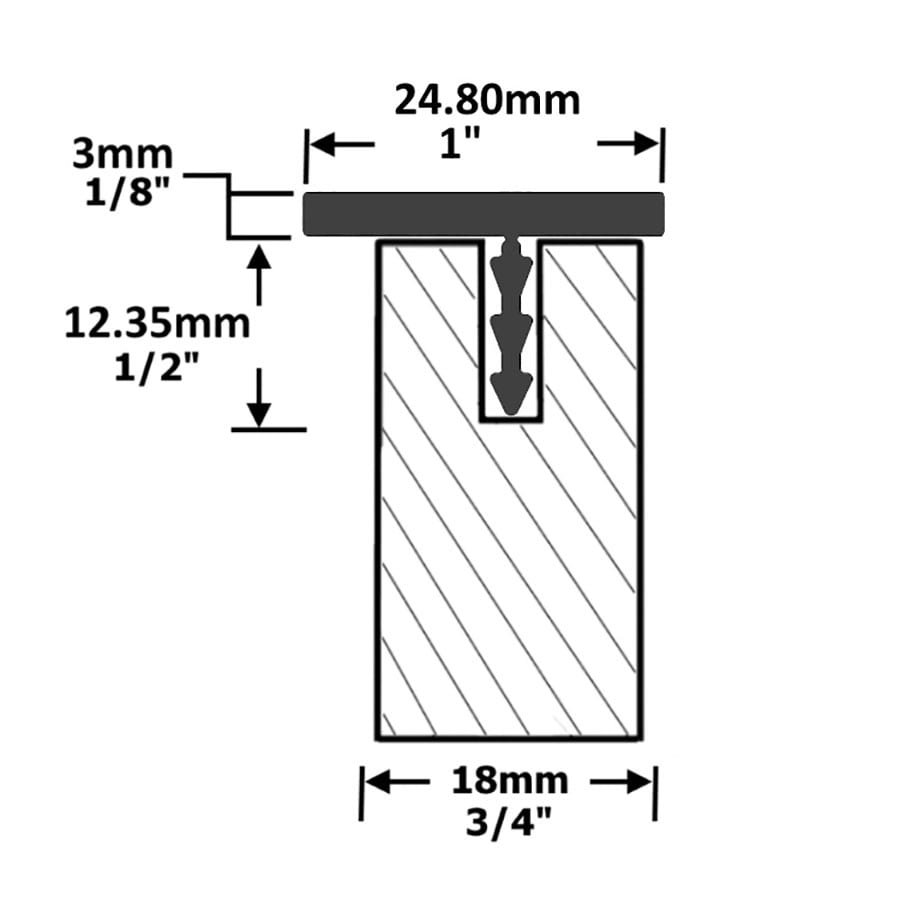

For use with Stickman Wall Fix Profile (AP8030), as well as a variety of other wall fixing methods. 25mm overall capping width. The position of the capping within the board can be adjusted to suit a variety of wall-to-panel spacings provided by other fixing methods.

Benefits of Stickman Offset Panel Cap 25mm

• Provides an effective panel trim solution to the wall.
• Conceals fixings behind the panel.
• Maximum strength fixing to panel edge.
• Position can be adjusted to suit various fixing methods.
• 100% accurate alignment with insertion into routed slot profile.
• Simplified assembly saves factory and/or installation time.
• No external fixings.

Length: 5000mm

Finish: Natural Anodised
