Stickman Linear – Panel Joiner

Stickman Linear Panel Joiner provides an attractive solution for joining interior wall paneling.

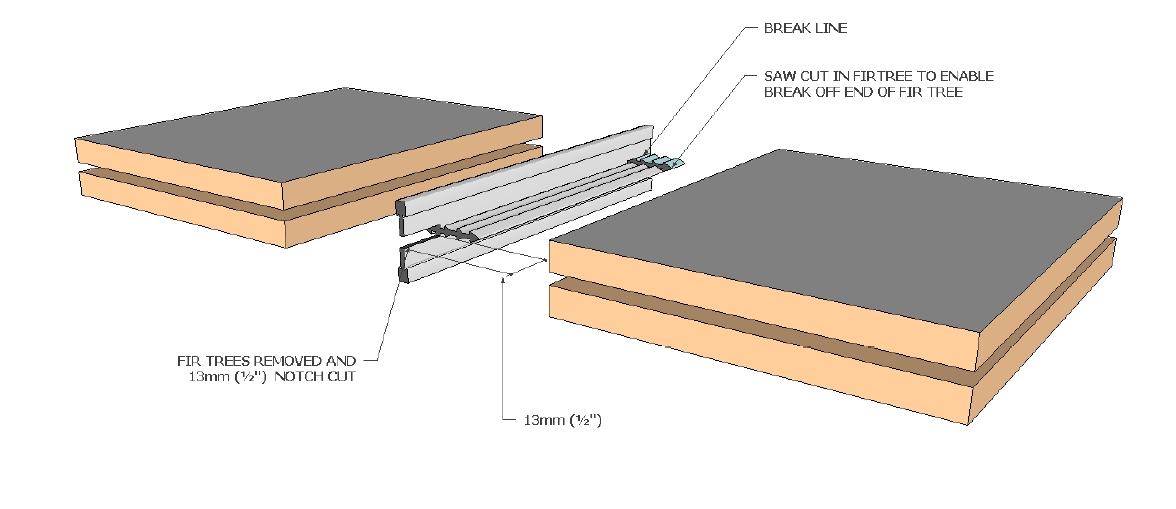

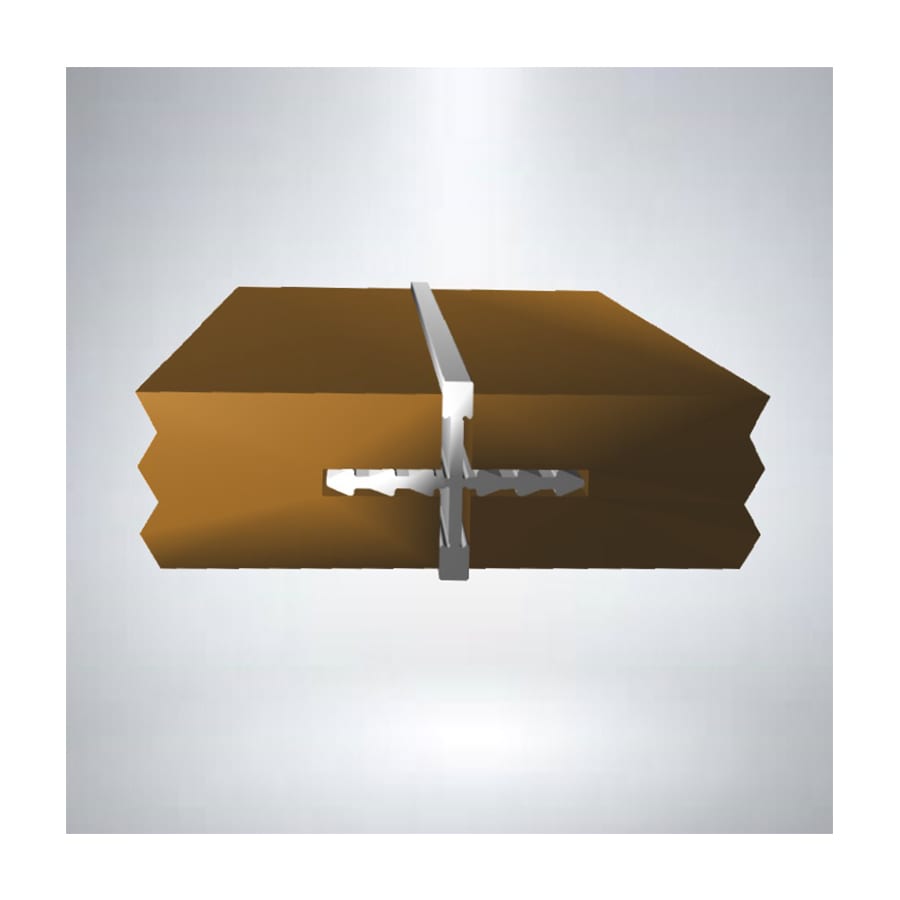

The Stickman ‘fir-tree’ tongue is inserted into a routed slot on the edge of each wall panel. Specially designed ‘glue-traps’ retain the glue within the slot, ensuring optimum join strength of the panels is achieved. ‘Break-Lines’ retained in the design allow sections of the tongue to be easily removed on-site to enable intersection of panel joiners in both horizontal and vertical.

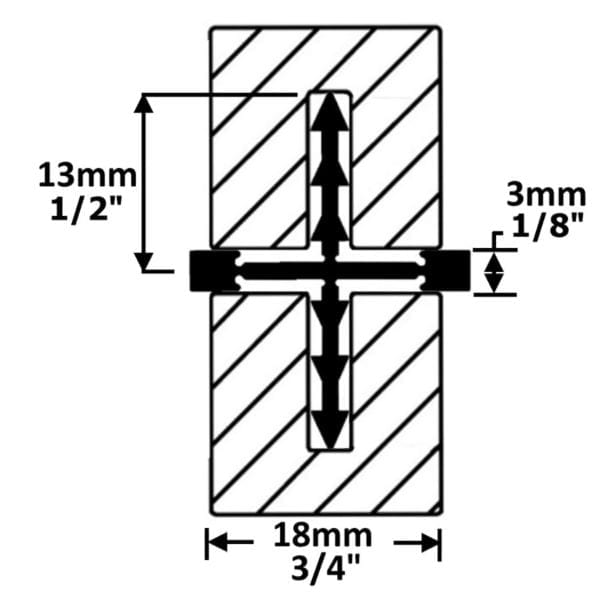

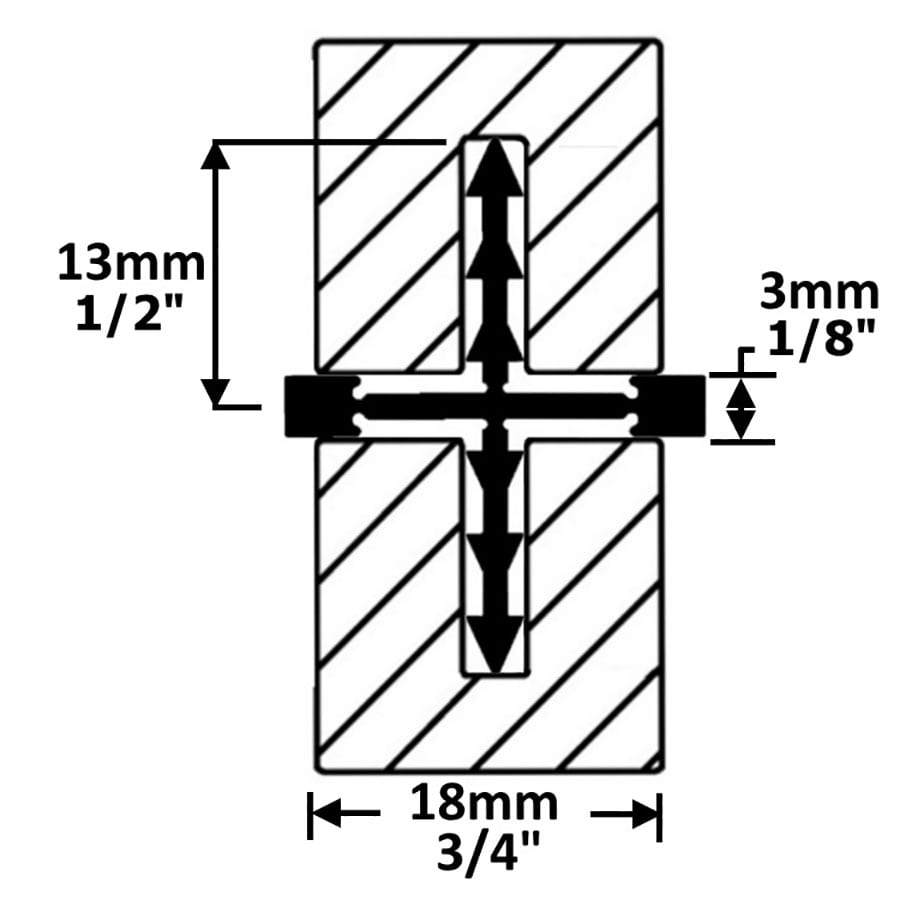

The design of the Stickman Linear Panel Joiner allows 100% accuracy and consistency on all wall panels. By adjusting the position of the routed slot in the panels, you can achieve different visual positions of the exposed nosing. Examples include:

• Proud – nosing is exposed on face of board.
• Flush with wall panels.
• Recessed – nosing can be recessed between 2 x wall panels.

Stickman Linear Panel Joiner can also be powdercoated on request at additional cost.

Use with Stickman Linear Corner Profile (AP8007) and Stickman Linear Panel Cap (AP8009) to create a complete wall panelling solution

Benefits of Stickman Linear Panel Joiner

• Strongest method of joining panels.
• 100% accuracy and consistency of alignment across all panels.

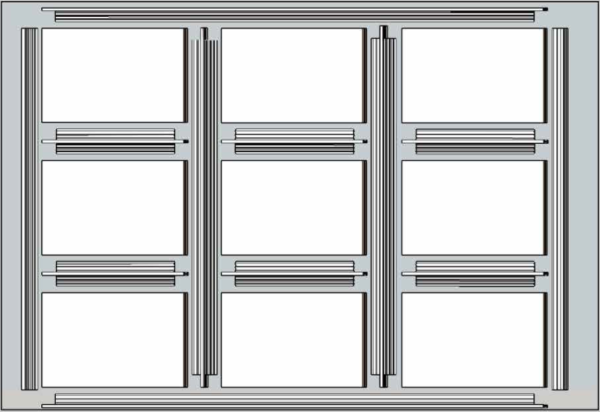

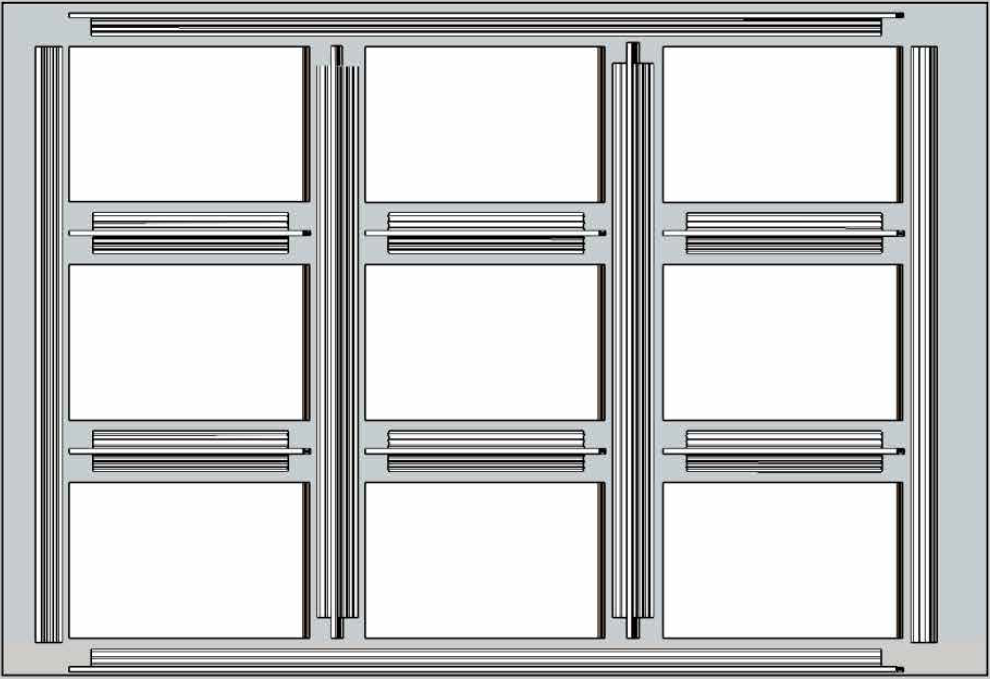

• Use for vertical and horizontal joins.
• ‘Break-lines’ within tongue allow sections to be removed at intersection points.
• Exposed nosing can be adjusted to suit ‘flush’, ‘proud’ or ‘recessed’.
• Simplified assembly saves factory and/or installation time.
• No screw fixing required.

Length: 5000mm

Finish: Natural Anodised
